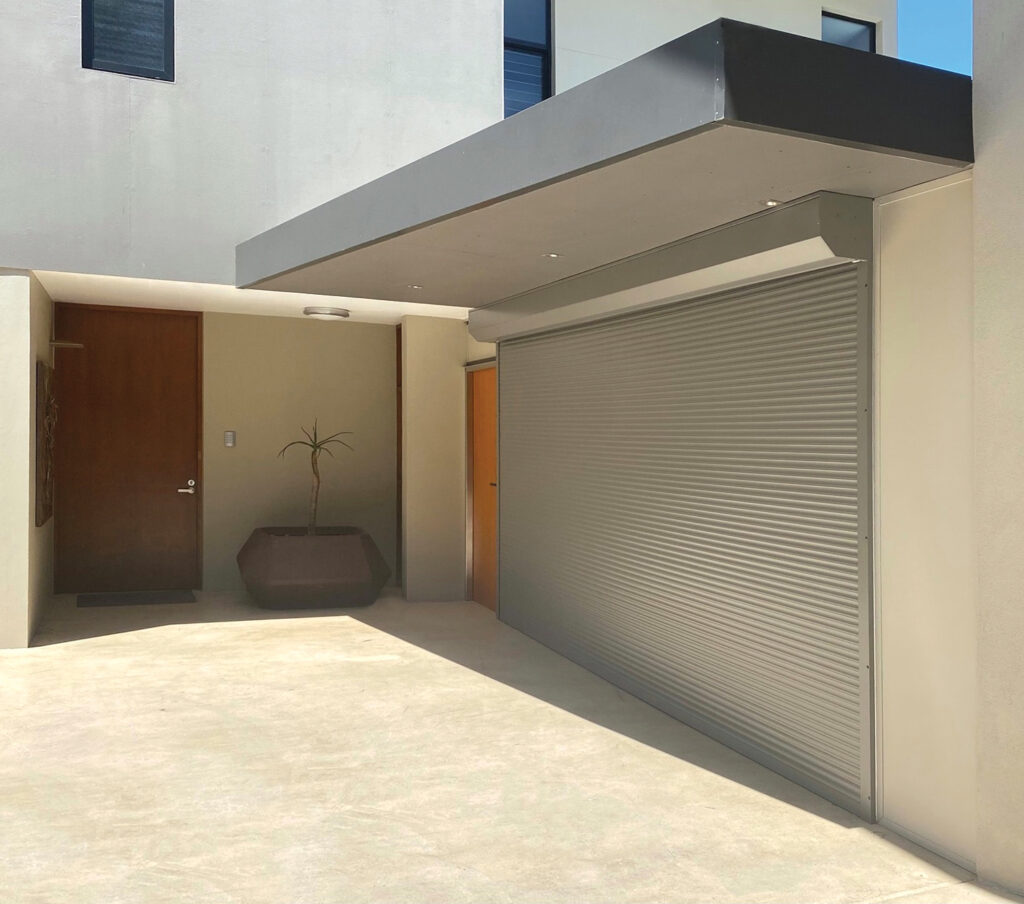

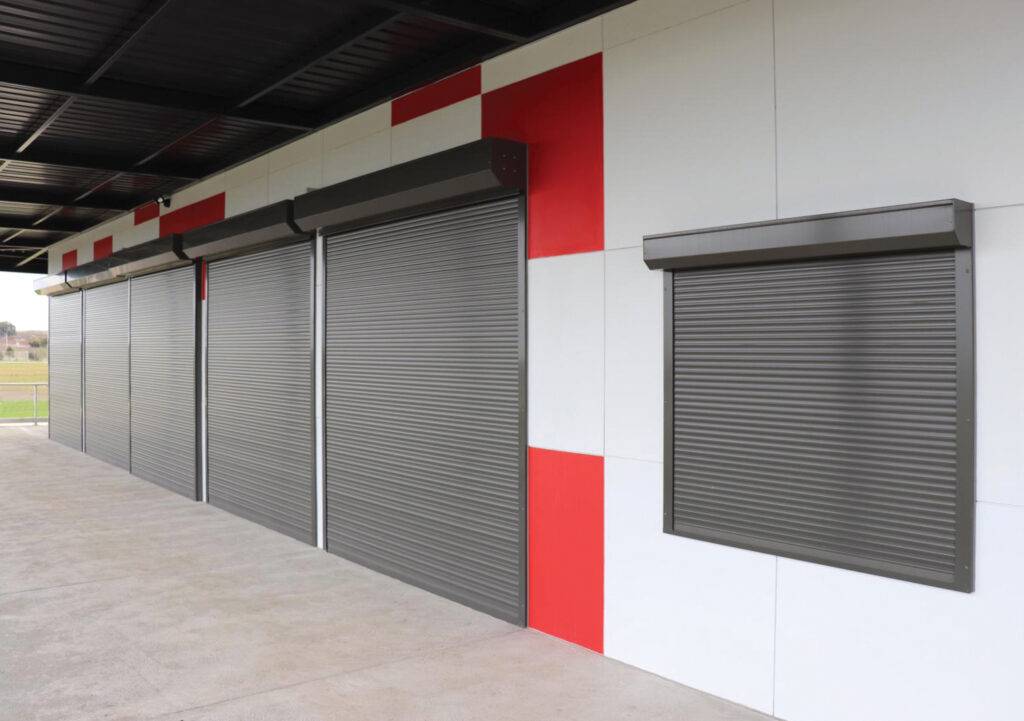

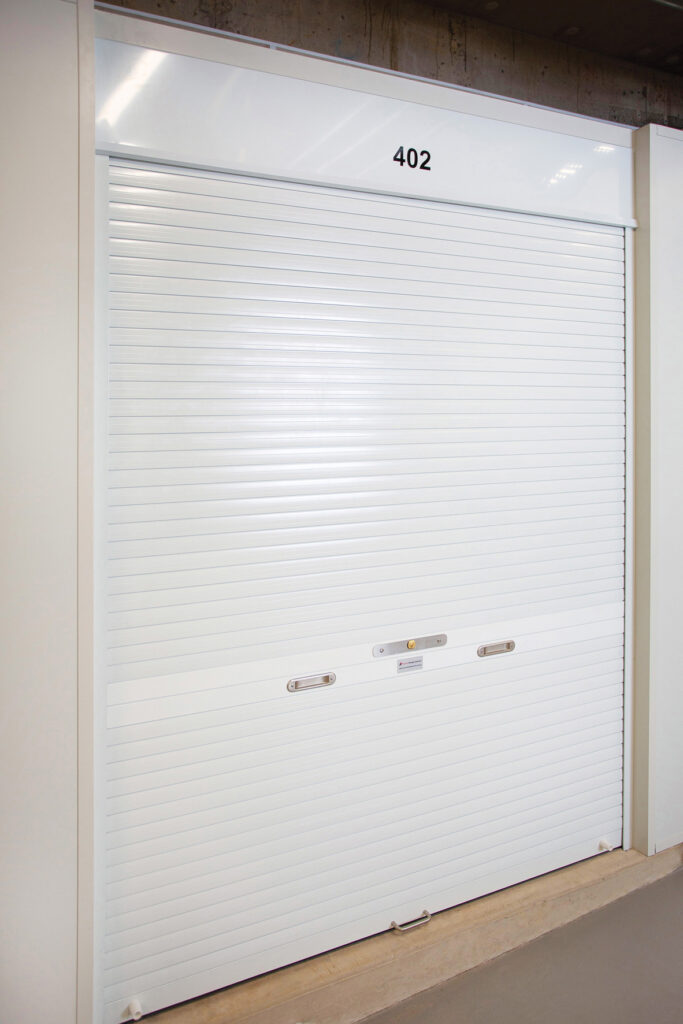

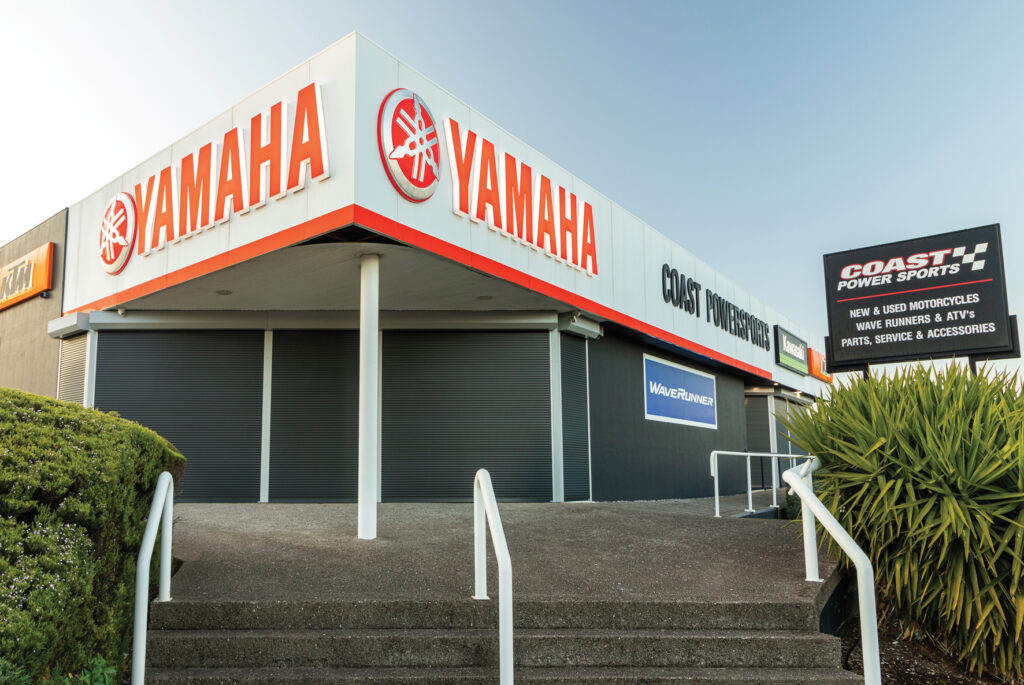

An aesthetically pleasing roller shutter, designed for compact openings. The heavy-duty, double-wall, slimline profile provides robust protection. The Galaxy Rollersafe Cyclone-Rated Shutter requires minimal headroom with the use of an octagonal barrel, housed in a pelmet. It is ideally suited to small to medium-sized enclosures including cabinets, windows, and storefronts, with a wide range of profile colours. This shutter complies with AUS/NZ cyclone-ratings (AS/NZS 1170.2:2011).
GALAXY ROLLERSAFE ALUMINIUM CYCLONE ROLLER SHUTTER
Technical Specifications
MAXIMUM WIDTH: 2500mm (Manual) | 5000mm (Motorised)
MAXIMUM HEIGHT: 2500mm (Manual) | 3000mm (Motorised)
APPROX. WEIGHT PER SQM: 18 kgs. per sqm
SLAT HEIGHT: 36mm (double wall)
SLAT THICKNESS: 1.2mm
BARREL TYPES: Octagonal
BRACKETS: 4mm duragalv mild steel angles and plates
SIDE GUIDES: 68mm deep x 25mm wide (face fixed or heal fixed)
WIND LOCKS: Yes (optional)
DOOR FINISH: Standard Satin Silver Anodised / Dulux Duralloy Powder Coating
Product Specification Sheet
Product warranty—12 months (Materials and Workmanship)
Scotty Doors Ltd has a continuing programme of product development and reserves the right to alter specifications at any time without notice.
Door Operation
- Manual spring-balanced operation
- Motorised operation (low cycle applications only) via a single-phase internal tubular motor / controllers / limit switches, with options for external key switches, remote controls, and UPS battery backup units
Locking (for manual operation)
- Snib Lock (with thumb-turn)
- Dead Lock (keyed both sides)
Power Requirements (for Motorised Operation)
- Single-phase outlet (10amp), located within 1 metre of the motor—plug and go setup
Manual Spring-balanced
- Head Room: 250mm
- Side Room (both sides): 100mm
- Projection: 300mm
Motorised
- Head Room: 250mm
- Side Room (both sides): 100mm
- Projection: 300mm
External Work by Others
- Power supply provision, if required
- Structurally sound wall/mounting points to support the roller grille, designed & approved a certified engineer
- Adequate headroom, side room, and projection to ensure successful operation
