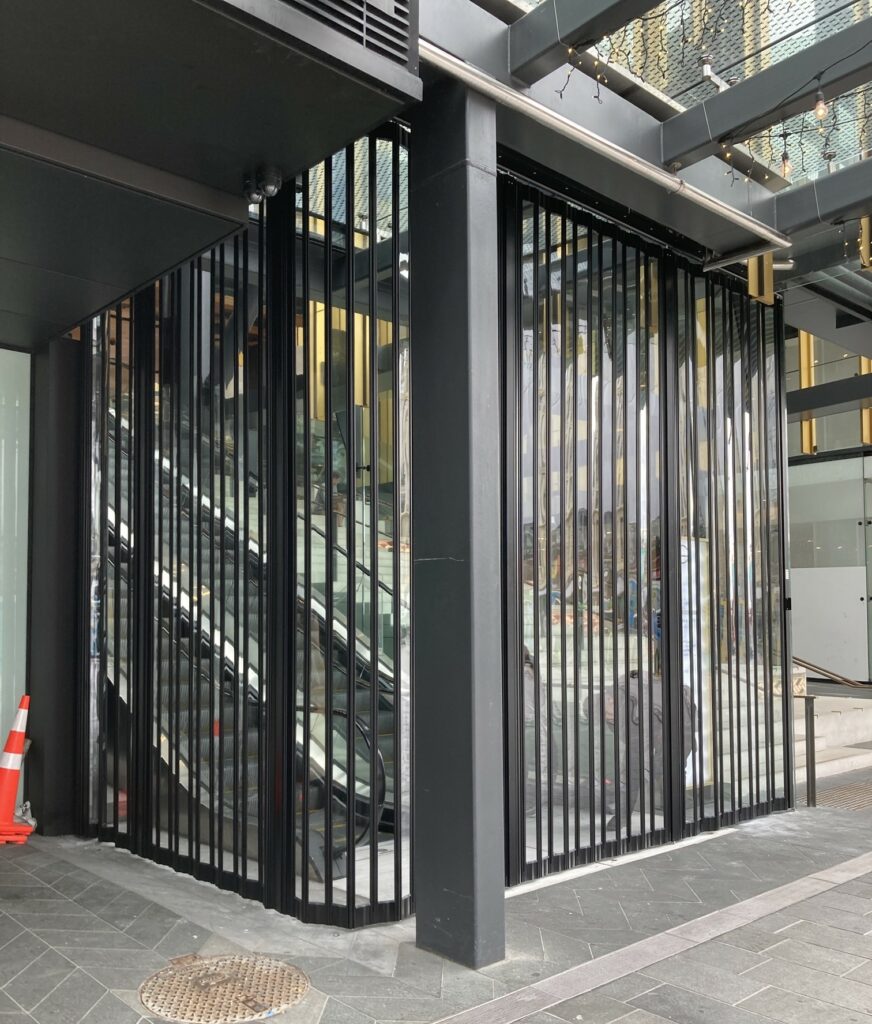

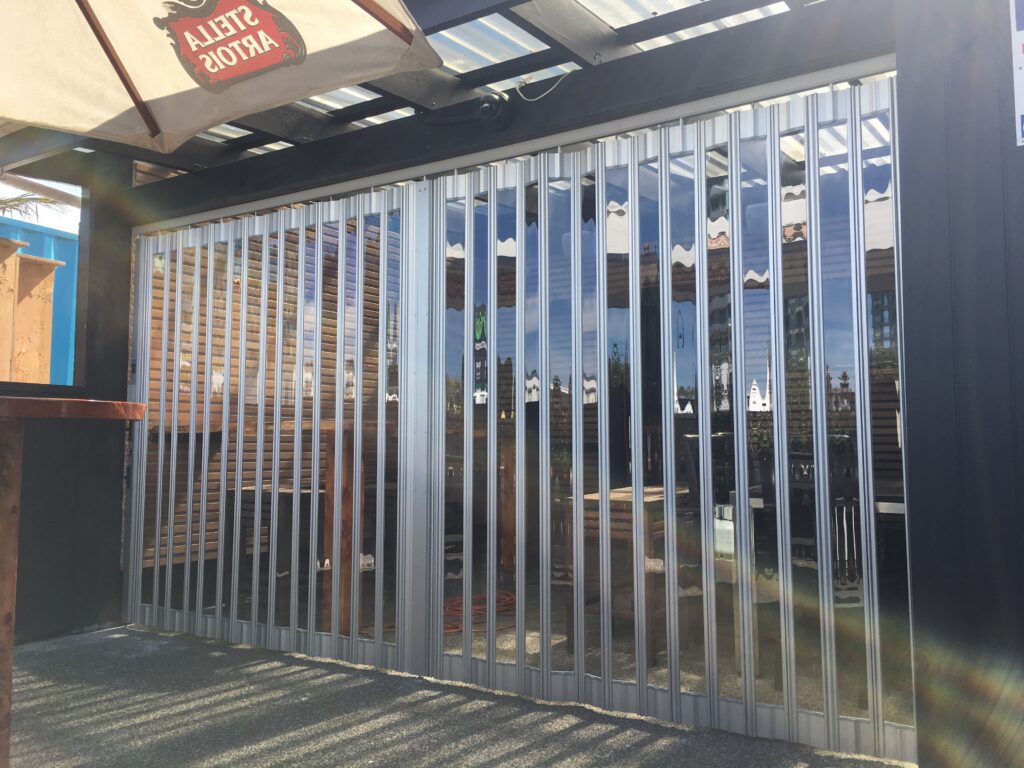

The Meridian Slimline Folding Closure, designed and manufactured in New Zealand, offers a practical and visually appealing solution. This folding closure eliminates the need for a custom bulkhead to be built or a motor to be installed, providing a cost-effective alternative. It is suitable for a wide range of internal and external applications, including shopfronts, cafes, reception areas, and bars.
MERIDIAN SLIMLINE FOLDING CLOSURE
Technical Specifications
MAXIMUM WIDTH: Unlimited
MAXIMUM HEIGHT: 4200mm
APPROX. WEIGHT PER SQM: 15 kgs. per sqm
PANEL TYPE: Impact-resistant polycarbonate panels with bulb ends
PANEL WIDTH: 96mm (150mm hinge to hinge)
PANEL THICKNESS: 2mm
LOCKING POSTS: 70mm deep x 35mm wide
CEILING TRACKS: 36mm deep x 46mm wide (36mm allowed to be recessed)
STANDARD CURVES: 45° and 90° | 230mm radius (special curves upon request)
DOOR FINISH: Standard Satin Silver Anodised / Dulux Duralloy Powder Coating
Product Specification Sheet
Product warranty—12 months (Materials and Workmanship)
Scotty Doors Ltd has a continuing programme of product development and reserves the right to alter specifications at any time without notice.
Locking Posts
- Main locking posts have a top & bottom mechanically retractable locking system
- Intermediate posts have bottom-locking pins
- Bi-parting posts are available with latch-locking systems for easy egress where required
Locking (Euro Cylinders)
- Snib Lock (with thumb-turn)
- Dead Lock (keyed both sides)
External Work by Others
- Structurally sound timber structure (throughout the ceiling track line) to support the folding closure, designed & approved by a certified engineer
- Adequate room for the door within the pocket, if required (inquire with Scotty Doors)
